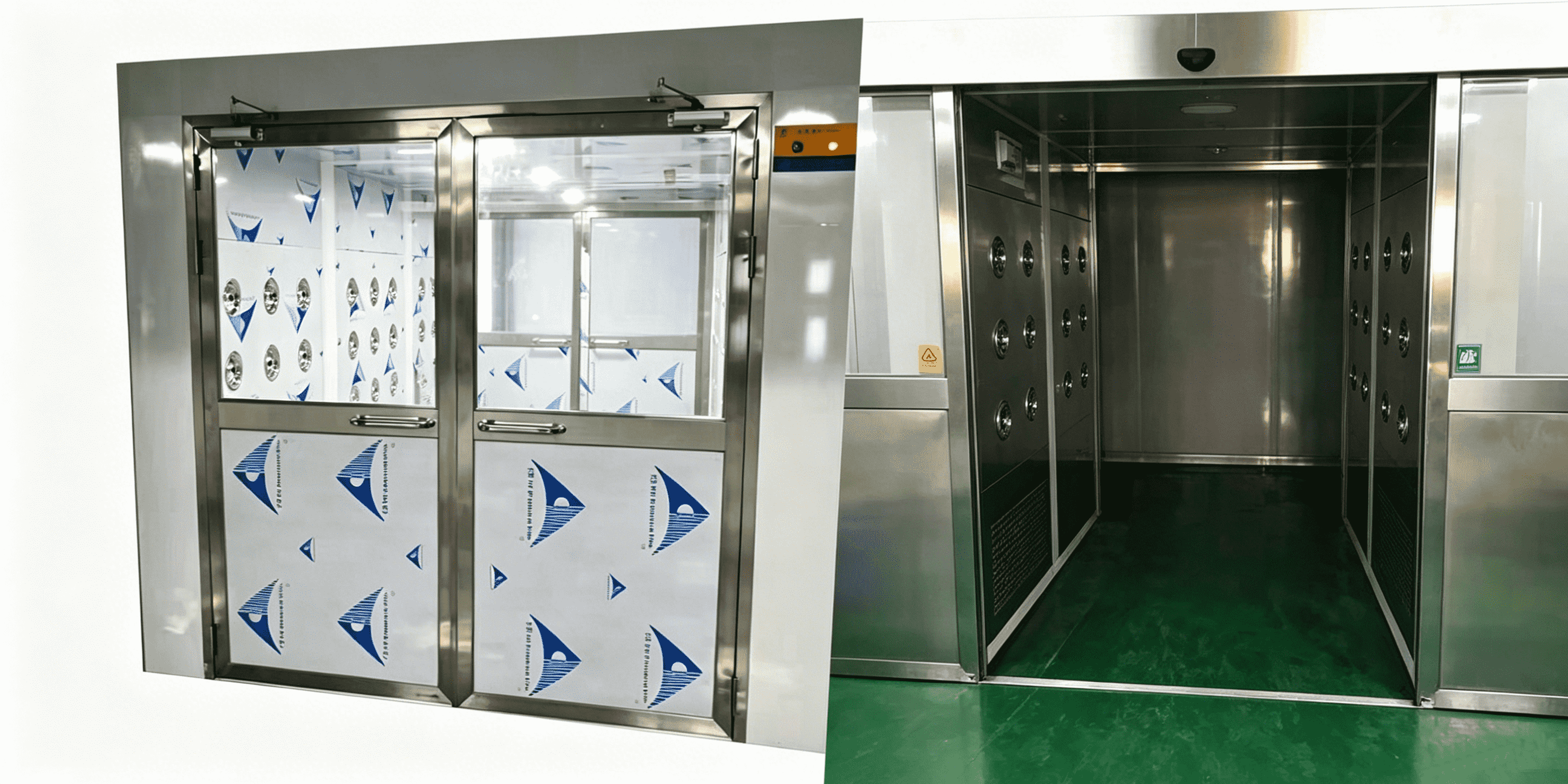

Cargo Air Shower
分享
Cargo Air Shower
Features：
- The cargo air shower is a necessary access passage for goods entering cleanrooms, which effectively reduces cross-contamination caused by goods entering and exiting the clean area. Equipped with a dual-door electronic interlock system, it functions as an airlock chamber to isolate unpurified external air and prevent pollutants from entering the cleanroom
Configuration Options：
- Manual double doors
- Automatic door devices
- Automatic double sliding doors
- Dual-door interlock
- Rapid roller door
Material Options：
- Full 201 stainless steel
- Full 304 stainless steel
- Inner 201 stainless steel + outer baking paint
- Inner 304 stainless steel + outer baking paint
Technical Parameters:
|
|
Standard Cargo Air Shower
|
Standard Channel Type
|
|
Inner Dimensio（mm）
|
1500×1860×2000
|
2000×3680×1980
|
|
Overall Dimension（mm）
|
2000×2000×2000
|
2500×4000×2050
|
|
Air Shower Time
|
0-99s (adjustable)
|
|
|
Nozzle Diameter
|
Φ38mm
|
|
|
Power Supply
|
380V 50Hz
|
|
|
Max Power
|
4.4KW
|
8.8KW
|
|
HEPA Filter Quantity
|
4 pcs
|
4 pcs
|
Note: Custom manufacturing is acceptable. The actual color of filter media may differ from pictures, subject to real products.
