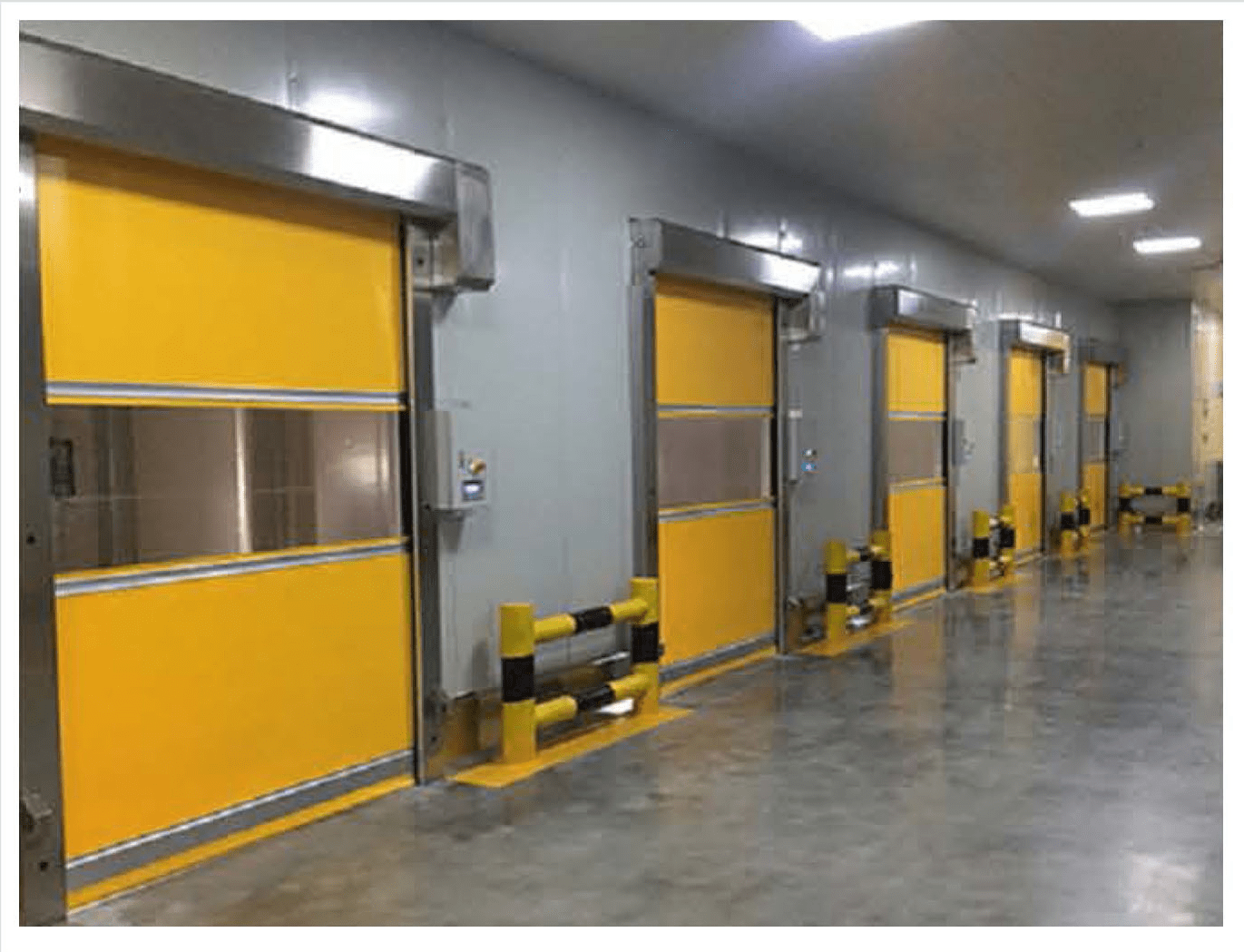

PVC High Speed Roller Shutter Door

Features：

• Also known as high-speed soft curtain door, the PVC high speed roller shutter door is a barrier-free isolation door with an operating speed of over 0.6 meters per second. Designed for rapid opening and closing, it realizes fast space isolation to stabilize indoor air quality and dust-free cleanliness level. It integrates multiple functions including thermal insulation, cold preservation, insect prevention, wind resistance, dustproof, sound insulation, fire resistance, odor isolation and daylighting. Widely applicable for food, chemical, textile, electronics, supermarket, refrigeration, logistics and warehouse sites, this high-speed automatic door effectively saves energy, improves operational efficiency and creates a clean, stable and high-efficiency working environment for high-performance logistics and cleanroom scenarios

Technical Specifications：

• Operating Speed: 0.6-2.0 m/s
• Servo Control System: High-precision PLC + frequency converter control, single-chip microcomputer control system + servo motor
• Frame & Housing Material: 304 stainless steel, thickness 1.55mm
• Max Door Size: Maximum customized dimension up to W6m × H6m

Curtain Material:

• Door Curtain Material: High-strength industrial polyester base fabric imported from France; thickness: 0.8mm-2.0mm
• Material Tensile Strength (Warp / Weft): 5700 / 5100 N/5CM
• Tear Strength (Warp / Weft): 900 / 80 N
• Working Temperature: -30℃ ~ +70℃
• Fire Rating: French standard NF-P92-503 M2 / German standard DIN 4102 B1

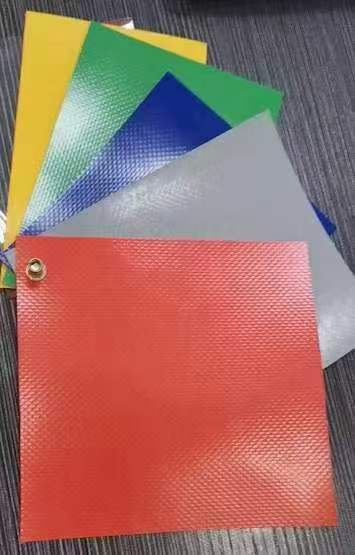

Curtain Color Options：

• Yellow, gray, blue, dark blue, orange, full transparent
• Transparent PVC Sheet Thickness: 1.3mm-2.0mm
• Optional rectangular or elliptical transparent window for improved safety and site management

Performance Features：

• Safety Performance: Equipped with orange photoelectric warning flash light for opening/closing reminder. Manual crank handle available for emergency opening and closing during power failure, ensuring safe and convenient operation
• Sealing Performance: Elastic PVC base fabric at the bottom fits uneven ground tightly, meeting Class 10,000 cleanroom standards. Double-side sealing brushes or rubber strips reduce noise and enhance overall airtightness
• Diversified Control Methods: Button control, pull rope control, remote control, geomagnetic induction, radar induction, photoelectric induction, interlock linkage and infrared automatic opening systems are optional
