Air Shower
分享

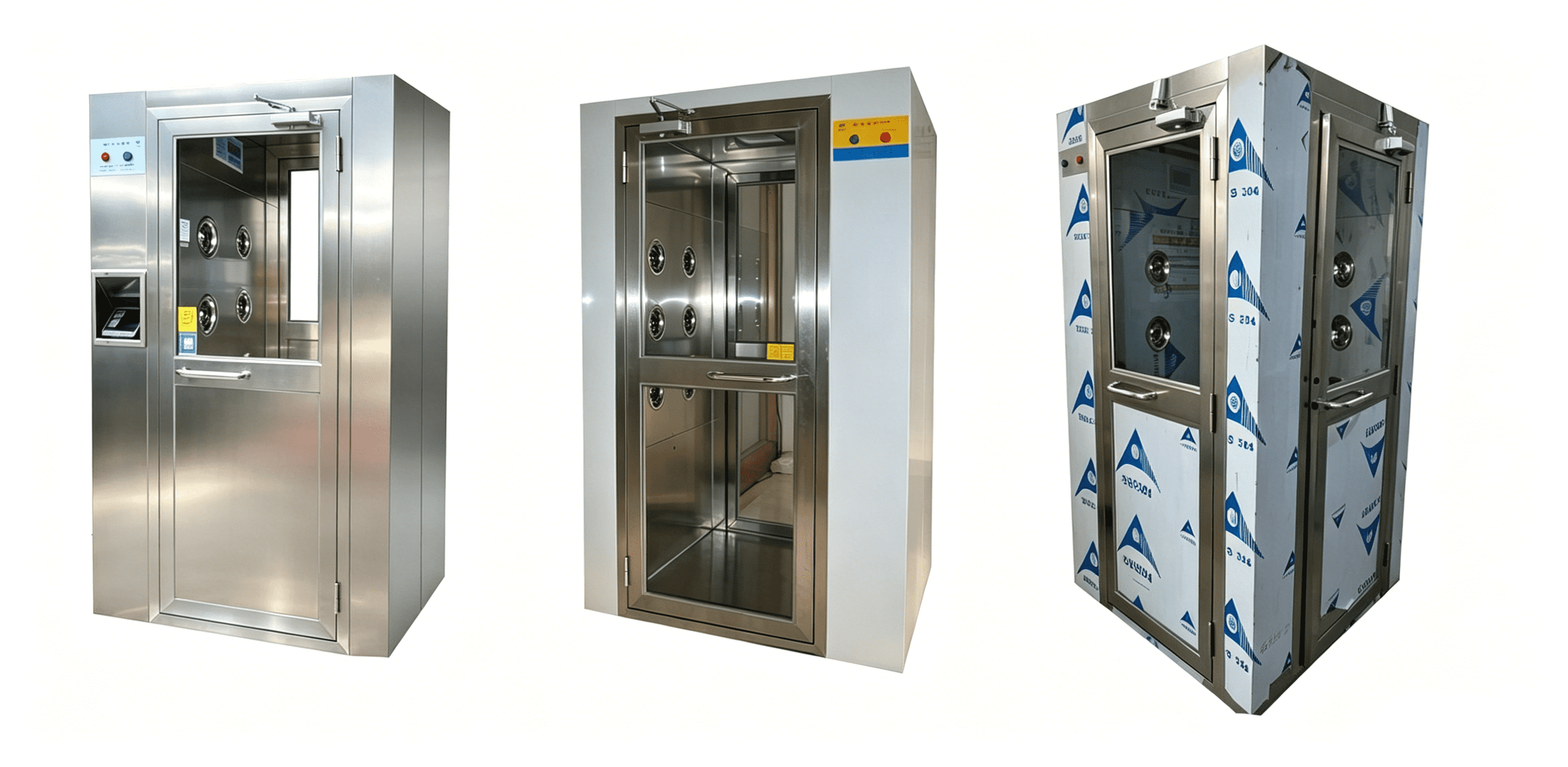

Air Shower
Features：
- The air shower is a dedicated personal purification device for operators entering cleanrooms. It removes contaminants and dust from the human body through high-speed clean airflow. Equipped with adjustable nozzles, it achieves thorough dust removal and effectively prevents external pollutants from invading clean areas
Configuration Options：
- Electronic interlock
- Face recognition access control
- Intelligent voice prompt
- 90° corner structure
- Infrared automatic induction
Material Options：
- Full 201 stainless steel
- Full 304 stainless steel
- Inner 201 stainless steel + outer baking paint
- Inner 304 stainless steel + outer baking paint
Technical Parameters:
|
|
Single Person Double Blowing
|
Double Person Double Blowing
|
Three Person Double Blowing
|
Six Person Double Blowing
|
Channel Type
|
|
Applicable Users
|
1
|
2
|
3
|
4 - 6
|
10-15
|
|
Air Shower Time
|
1-99 seconds (adjustable)
|
||||
|
Number of nozzles
|
12
|
18
|
24
|
36
|
60
|
|
Nozzle Diameter
|
Φ38mm
|
||||
|
Nozzle Air Outlet Wind Speed
|
≥20m/s
|
||||
|
HEPA Filter Efficiency
|
99.99% @ 0.3μm
|
||||
|
Internal Size（mm）
|
800×860×1910
|
800×1340×1910
|
800×1860×1910
|
800×2860×1910
|
800×4860×1910
|
|
Overall Dimension（mm）
|
1200×1000×2050
|
1200×1500×2050
|
1200×2000×2050
|
1200×3000×2050
|
1200×5000×2050
|
|
Power Supply
|
380V 50Hz Three-phase, five-wire system
|
||||
|
Max Power (W)
|
1100
|
1100
|
2200
|
3300
|
5500
|
|
Weight (kg)
|
150
|
200
|
260
|
390
|
650
|
Note: Custom manufacturing is acceptable. The actual color of filter media may differ from pictures, subject to real products.
