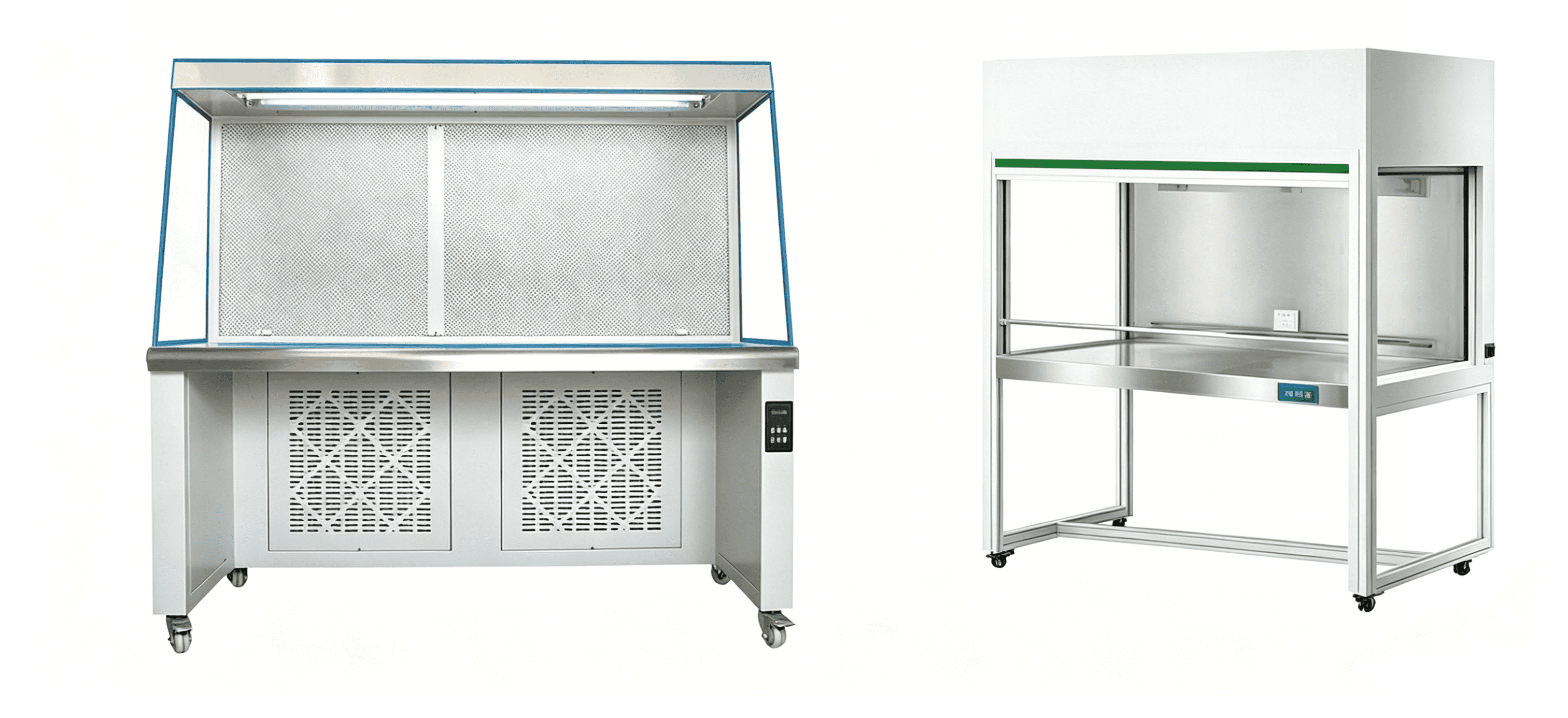

Clean Bench / Laminar Air Flow Cabinet
Design Features：
- This unit is a local purification device with vertical or horizontal laminar flow, delivering Class 100 cleanliness for the working zone. The series comes in two structural designs: integrated type and split type (bench separated from self-purifier). Custom designs are available to meet diverse client requirements.
Product Highlights：
- Class 100 cleanliness, compliant with ISO 14644-1 international standard
- Horizontal airflow and open worktop for convenient operation
- Equipped with adjustable airflow & low-noise fan system to maintain optimal wind speed
- Cabinet made of electrostatic powder coated steel with smooth finish; worktop adopts 304 stainless steel
- Material Options: Full powder coated steel, 201 stainless steel or 304 stainless steel
Technical Parameters:
|
Model
|
ZK-1000
|
ZK-1350
|
ZK-1610
|
ZK-1915
|
|
Overall Dimension (mm)
|
W1000*L740*H1460
|
W1350*L740*H1460
|
W1610*L740*H1460
|
W1915*L740*H1460
|
|
Working Area (mm)
|
W980*L480*H610
|
W1285*L480*H610
|
W1590*L740*H610
|
W1895*L480*H610
|
|
Air Volume（m3/h)
|
900
|
1200
|
1500
|
1800
|
|
Air Velocity
|
0.45m/s±20%
|
|||
|
Cleanliness Class
|
Class 100 (ISO 14644-1)
|
|||
|
HEPA Filter Efficiency
|
99.99%@0.3um
|
|||
|
HEPA Filter Size & Q'ty
|
915*610*69-1
|
1220*610*69-1
|
915*610*69-1; 610*610*69-1
|
915*610*69-2
|
|
Worktop Material
|
Brushed 304 Stainless Steel
|
|||
|
Noise Level
|
<50dB
|
<50dB
|
<50dB
|
<50dB
|
|
Noise Test Position
|
20cm in front of the cabinet, 1.2m above ground
|
|||
|
Power Supply
|
AC.220V-50/60Hz
|
|||
|
Recommended Operators
|
1
|
1-2
|
2-3
|
3-4
|
Note: Custom manufacturing is acceptable. The actual color of filter media may differ from pictures, subject to real products.
