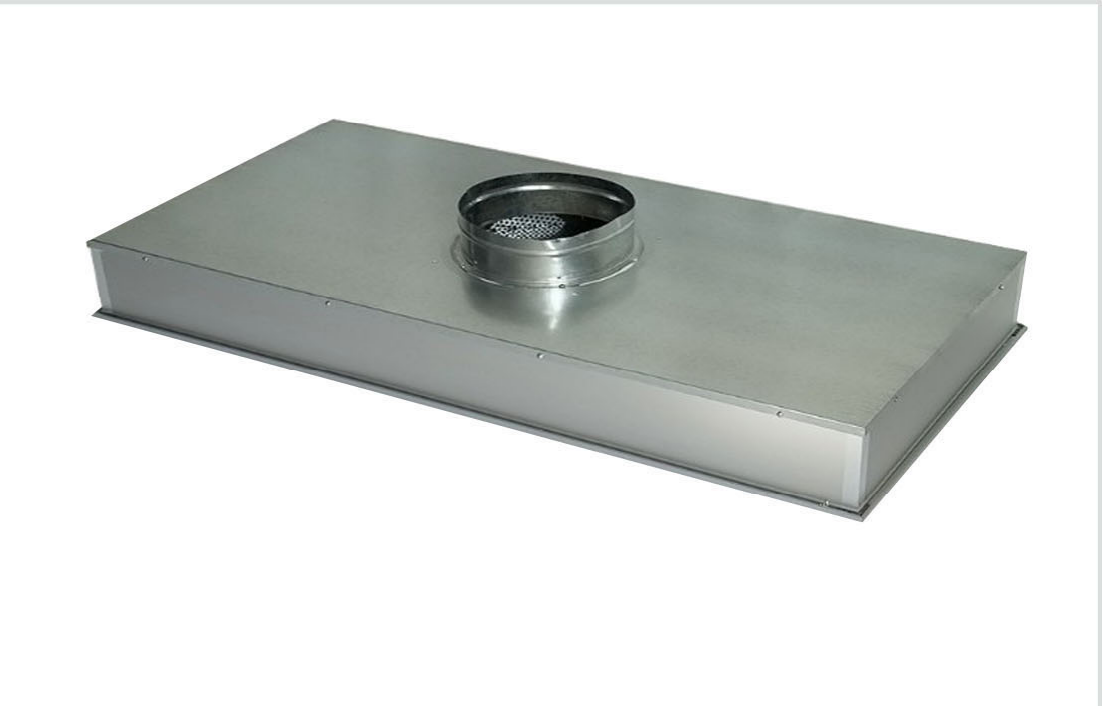

Integrated HEPA ULPA Filter Box / Disposable Terminal HEPA ULPA Module
分享
Integrated HEPA ULPA Filter Box / Disposable Terminal HEPA ULPA Module
Design Features：
- Fully enclosed structure with built-in HEPA or ULPA filter
- Low profile design and lightweight housing
- Compliant with leak detection and scanning test standards
| Max Operating Temperature |
80°C (158°F) Optional aluminum foil fiberglass thermal insulation on the back side |
|||||||
| Box Body |
high-quality cold-rolled steel plate with electrostatic anti-static powder coating
|
|||||||
| Sealing Gasket | Pre-installed at air outlet; removable per special customer requests | |||||||
| Protective Screen | Installed on the air outlet side | |||||||
| Standard Filter Media | Glass fiber HEPA filter, 99.99% efficiency for 0.3μm particles | |||||||
| Optional Accessories | ULPA filter media（Water-resistant glass fiber,99.9995% efficiency for 0.3μm particles ）External flat panel|unit without protective screen|separator & air volume controller|adjustable diffuser with separator|300mm (12") air inlet duct | |||||||
Technical Parameters:
|
Overall Dimensions（mm）
|
Rated Air Flow （m3/h)
|
Initial Resistance at Rated Air Flow
|
|||||
|
HEPA
|
ULPA
|
||||||
|
W
|
L
|
H
|
ln.W.G.
|
Pa
|
ln.W.G.(Pa)
|
||
|
600
|
600
|
150
|
600
|
0.50
|
125
|
0.58
|
145
|
|
600
|
915
|
150
|
900
|
0.50
|
125
|
0.58
|
145
|
|
600
|
1210
|
150
|
1200
|
0.50
|
125
|
0.58
|
145
|
|
600
|
600
|
175
|
600
|
0.32
|
80
|
0.36
|
90
|
|
600
|
915
|
175
|
900
|
0.32
|
80
|
0.36
|
90
|
|
600
|
1210
|
175
|
1200
|
0.32
|
80
|
0.36
|
90
|
Notes：Custom specifications are available. Slight color difference may exist between pictures and actual products, please refer to the real goods.
