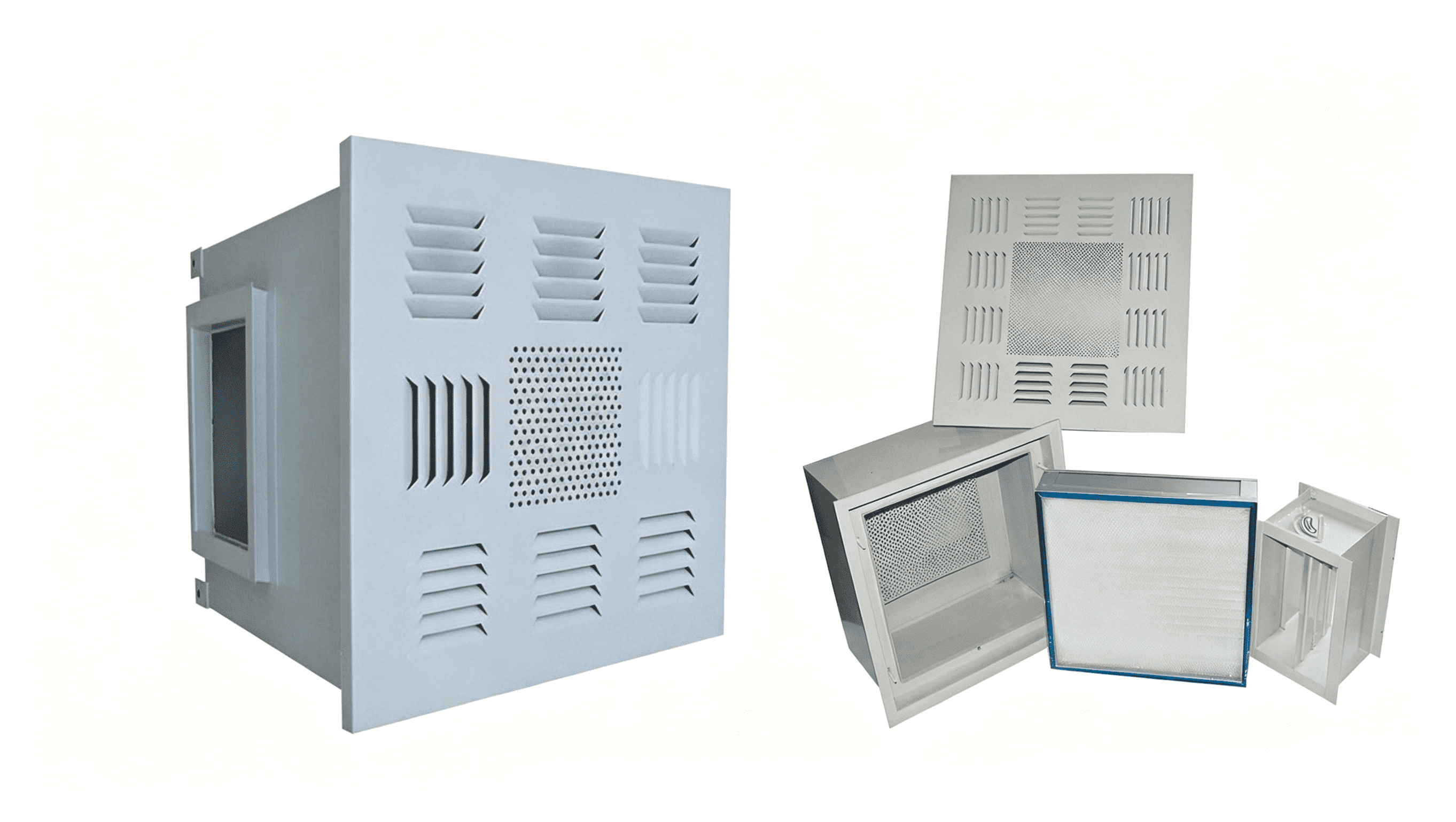

GH General HEPA Filter Box / Terminal HEPA Module
分享
GH General HEPA Filter Box / Terminal HEPA Module
Design Features：
Applications：
|
 |
Technical Parameters：
|
Model
|
Installation Dimension
(mm)
|
Filter Dimension
(mm)
|
Rated Air Flow (m³/h)
|
Intake Duct Dimensions(mm)
|
Duct Connection Size (mm)
|
Overall Box Dimension (mm)
|
|||
|
Side Airflow
|
Top Airflow
|
||||||||
|
CH-320
|
CH-320D
|
370×370×530
|
320×320×80
|
500
|
200×200
|
250×250
|
420×420×570
|
||
|
GH-484
|
GH-484D
|
543×543×530
|
484×484×80
|
1000
|
320×200
|
370×250
|
590×590×570
|
||
|
GH-610
|
GH-610D
|
660×660×460
|
610×610×80
|
320×250
|
370×300
|
710×710×550
|
|||
|
GH-820
|
GH-820D
|
870×650×460
|
820×600×80
|
1200
|
320×250
|
370×300
|
920×700×550
|
||
|
GH-630
|
GH-630D
|
680×680×530
|
630×630×80
|
1500
|
320×250
|
370×300
|
730×730×580
|
||
|
GH-726
|
GH-726D
|
776×534×530
|
726×484×80
|
400×200
|
370×300
|
826×584×580
|
|||
|
GH-915
|
GH-915D
|
965×660×460
|
915×610×80
|
500×250
|
550×300
|
1015×710×560
|
|||
|
GH-968
|
GH-968D
|
1018×543×530
|
968×484×80
|
2000
|
500×200
|
550×250
|
1068×584×570
|
||
|
GH-1220
|
GH-1220D
|
1270×660×460
|
1220×610×80
|
500×200
|
550×250
|
1320×710×510
|
|||
|
GH-945
|
GH-945D
|
995×680×543
|
945×630×80
|
2200
|
500×250
|
500×300
|
1045×730×610
|
||
|
GH-1260
|
GH-1260D
|
1310×680×530
|
1260×630×80
|
3000
|
650×300
|
650×300
|
1360×730×670
|
||
Notes：Custom specifications are available. Slight color difference between product images and actual goods may exist, please refer to the delivered products.
