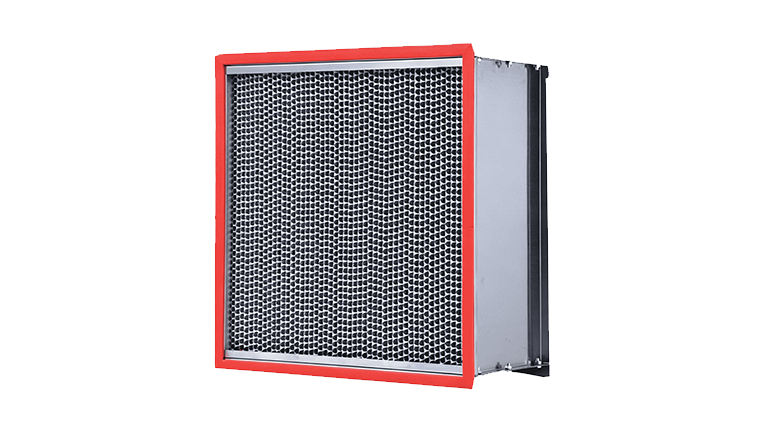

High Temperature Resistant HEPA Filter
Design Features:
- This separator-style high temperature resistant HEPA filter adopts corrugated separators to precisely maintain pleat spacing, maximizing filter media utilization with minimum air resistance. The filter media is designed with 180° folded pleats and two indentations at bends, forming wedge-shaped structures at separator ends to effectively prevent media damage
Applications：
- Air filtration for ultra-clean ovens and other equipment & systems requiring high-temperature air purification
Material Specification：
- Filter Media: H13-H14 glass fiber filter paper, U15-U17 American HV glass fiber filter paper
- Frame: Aluminum profile frame, bent aluminum frame, galvanized steel frame or stainless steel frame (for working temperature below 250°C); Galvanized steel frame or stainless steel frame (for working temperature above 250°C)
- Sealing Strip: PTFE sealing strip (applicable for 350°C - 400°C)
- Customization: Overall dimensions can be customized as required
Technical Parameters：
|
Model
|
Overall Dimensions（mm）
|
Rated Air Flow（m3/h)
|
Filter Area（M2）
|
Dust Holding Capacity
|
Initial Resistance(Pa)
|
Final Resistance (Pa)
|
Filtration Efficiency
|
||
|
W
|
H
|
D
|
|||||||
|
HT
|
484×484×120
|
450
|
4.3
|
250
|
≦200
|
400
|
H13-H14 (99.99%-99.995%)
|
||
|
610×610×120
|
750
|
6.90
|
400
|
||||||
|
915×610×120
|
1100
|
10.43
|
600
|
||||||
|
484×484×150
|
600
|
5.85
|
350
|
||||||
|
610×610×150
|
1000
|
9.39
|
550
|
||||||
|
915×610×150
|
1500
|
14.19
|
850
|
||||||
|
484×484×220
|
1000
|
9.22
|
550
|
||||||
|
610×610×220
|
1500
|
14.80
|
850
|
||||||
|
915×610×220
|
2500
|
22.35
|
1300
|
||||||
|
1220×610×220
|
2700
|
24.34
|
1500
|
||||||
Notes：Custom products are available. Slight color difference may exist between images and actual products, please refer to the real goods.
