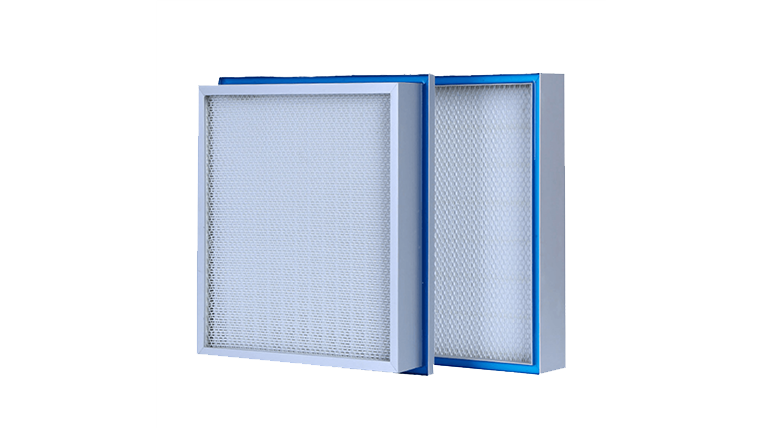

Liquid Gel Seal HEPA Filter

Design Features:

• Excellent sealing performance, easy installation, high filtration efficiency and low air resistance to reduce operating costs
• Frame: Aluminum profile
• Sealant: Polyurethane adhesive
• Separator: Hot melt adhesive / Fine spacer / Aluminum spacer
• Filter Media: Glass fiber
• Max Operating Temperature: 70°C
• Max Operating Humidity: 100% RH
• Gel Material in Groove: Blue & transparent jelly gel

Product Description：

• The liquid gel is blue, transparent and jelly-like, also known as jelly gel. As a non-Newtonian fluid, it features zero volatilization, no oil creep, non-toxic and odorless, and maintains stable performance at room temperature.
• Liquid gel sealing is more reliable than traditional mechanical compression sealing and is widely adopted globally. This type of HEPA filter delivers superior tightness and leak-proof performance. It serves as an ideal terminal filter for industrial and biological cleanrooms, as well as a perfect matching component for various purification equipment.
• Available standard thickness: 70mm, 93mm. Custom thickness can be produced with customized aluminum profile molds as requested.

Applications:

• High-standard clean rooms, large-area vertical laminar flow systems, Class 100 laminar flow hoods and other scenarios requiring HEPA filter installation.

Technical Parameters：
