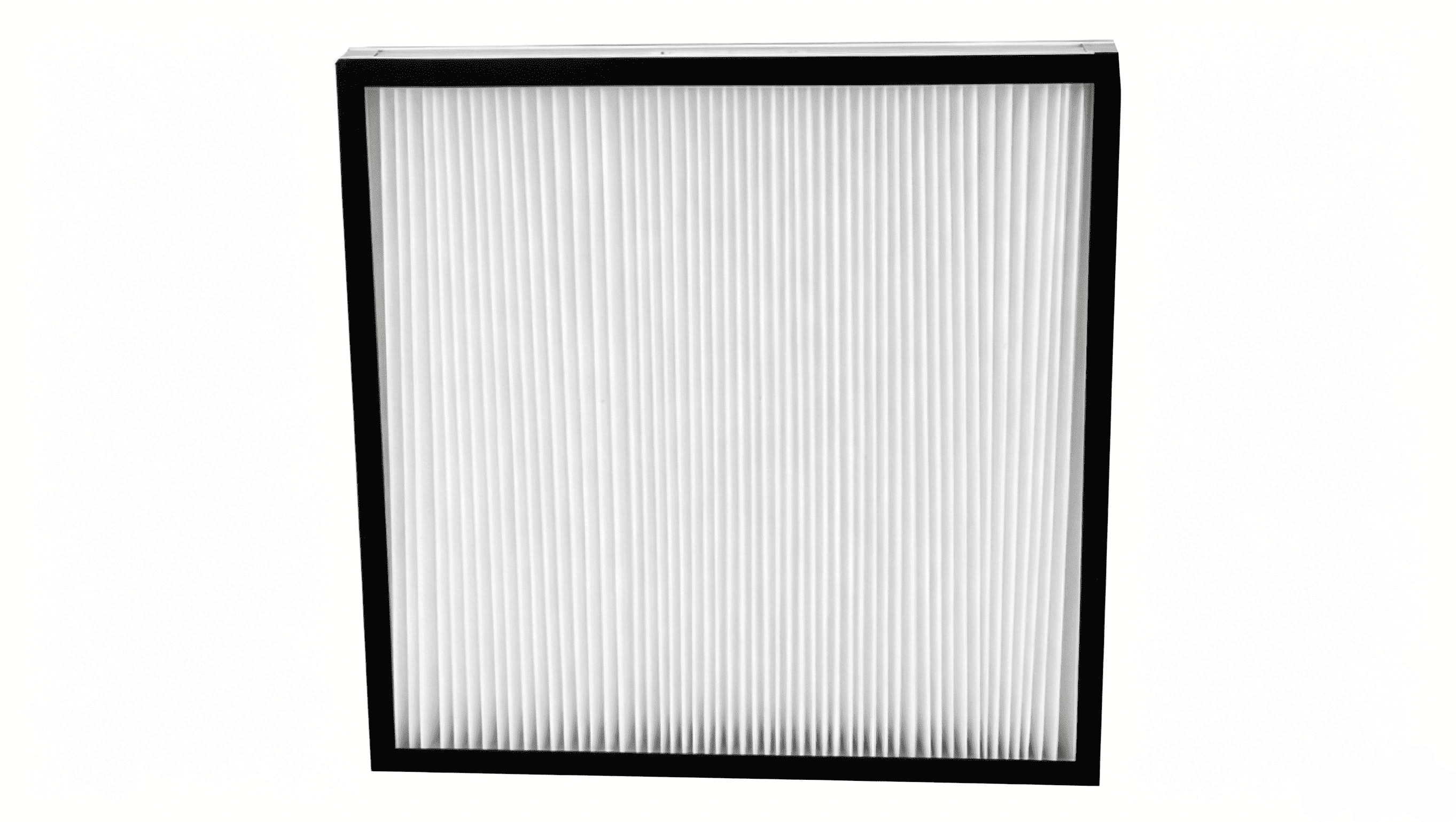

FB Medium Efficiency Panel Air Filter
分享
FB Medium Efficiency Panel Air Filter
Design Features：
Applications：
|
 |
Technical Parameters：
|
Model
|
Overall Dimensions（mm）
|
Rated Air Flow（m3/h)
|
Initial Resistance（Pa)
|
Efficienc（%）
Colorimetric Method
|
Material
|
||||
|
W
|
H
|
D
|
Frame Material
|
Filter Media
|
Sealing Material
|
||||
|
FB5
|
595×595×46
|
3300
|
≦90
|
45
|
|
Polyester Fiber
|
Polyurethane Adhesive
|
||
|
595×495×46
|
2300
|
||||||||
|
295×595×46
|
1600
|
||||||||
|
FB6
|
595×595×46
|
3600
|
≦105
|
65
|
|||||
|
495×495×46
|
2400
|
||||||||
|
295×595×46
|
1800
|
||||||||
|
FB7
|
595×595×46
|
3300
|
≦120
|
85
|
|||||
|
495×495×46
|
2300
|
||||||||
|
295×595×46
|
1600
|
||||||||
|
FB8
|
595×595×46
|
2500
|
≦140
|
95
|
|||||
|
495×495×46
|
1700
|
||||||||
|
295×595×46
|
1200
|
||||||||
Notes：Custom specifications are available. Slight color difference between product images and actual goods may exist, please refer to the delivered products.
