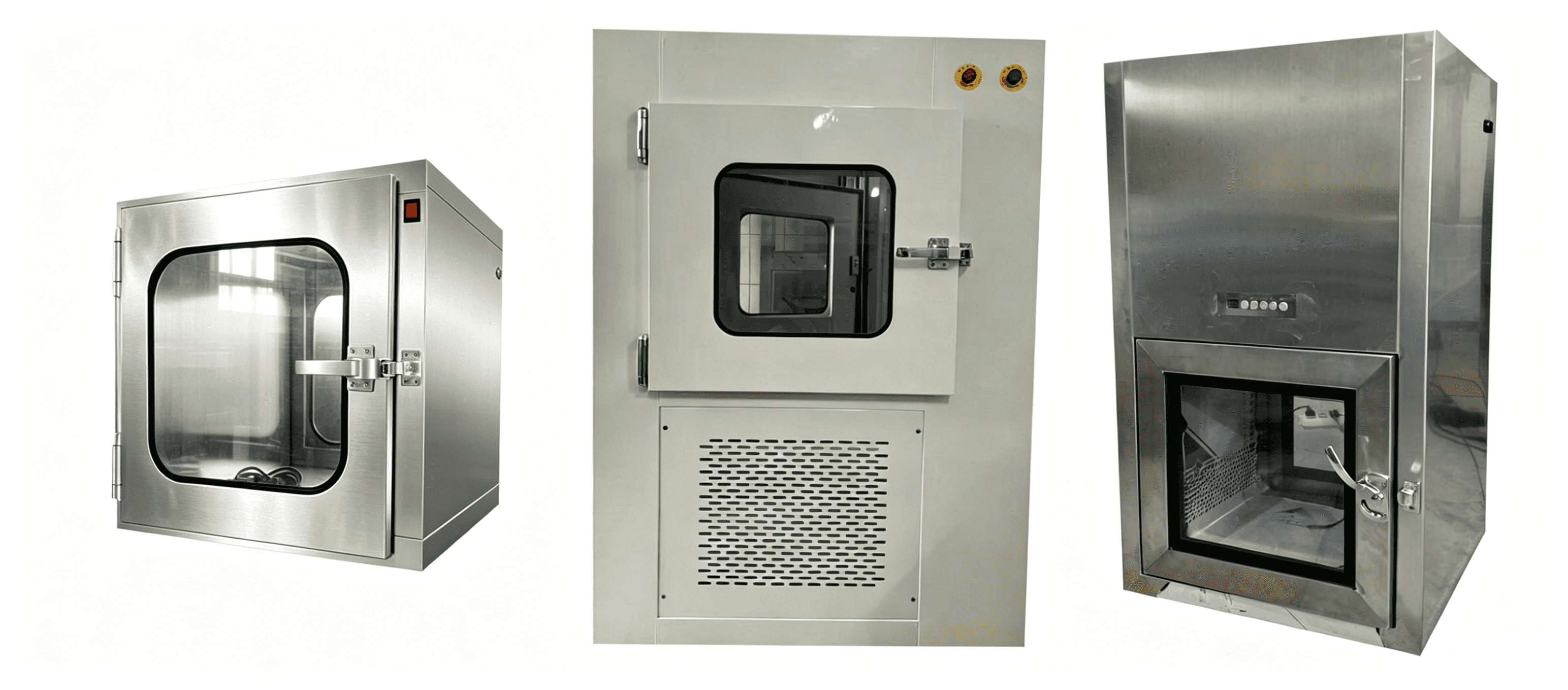

Standard Pass Box / Air Shower Pass Box

Product Description：

• Pass box is an essential auxiliary device for cleanrooms. It is designed for transferring small items between clean areas or between clean and non-clean areas. It effectively reduces door opening frequency and minimizes contamination inside cleanrooms
• The unit is constructed with stainless steel for a smooth and neat surface. Equipped with interlocked double doors to prevent cross-contamination, it is available with mechanical or electronic interlock system, and can be fitted with UV germicidal lamp

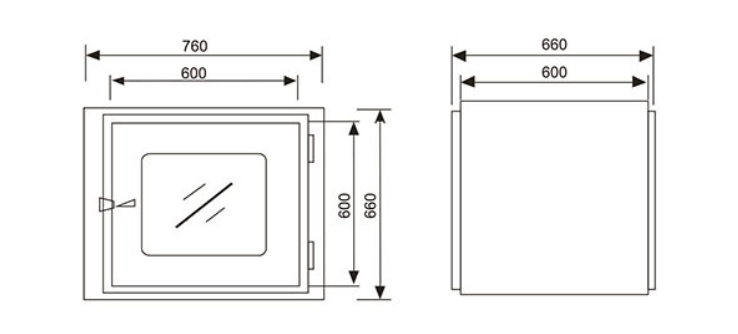

Standard Pass Box：

• Inner chamber: Stainless steel; Outer casing: High-quality steel with powder coating
• Equipped with mechanical or electronic interlock for double doors
• UV germicidal lamp can be installed upon request

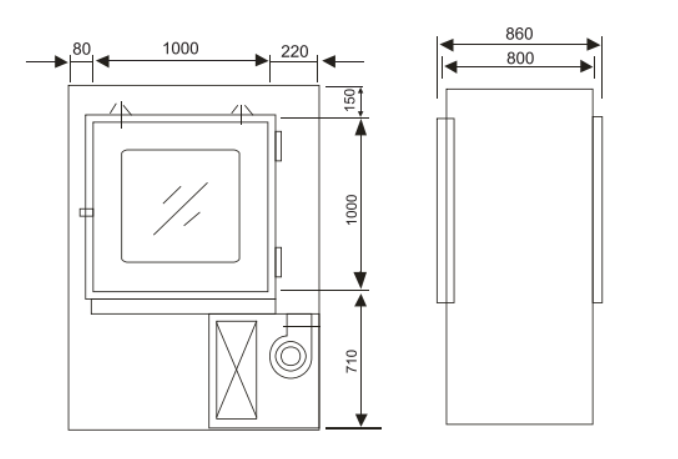

Air Shower Pass Box：

• Inner chamber: Stainless steel; Outer casing: High-quality steel with powder coating
• Mechanical or electronic interlock system
• 4 stainless steel nozzles mounted on the top, air velocity: 16-20 m/s
• Power supply: 380V; Rated power: 400W
• Optional UV germicidal lamp as required
