Fan Filter Unit / FFU
分享
Fan Filter Unit / FFU
Product Description：
- FFU is mounted on the ceiling of cleanrooms with coverage ranging from 25% to 100%. It supplies clean air and realizes particulate filtration control for contamination-free environments
- Widely applicable to cleanrooms of Class 10 to Class 10,000. It can also be assembled into ultra-clean production lines, clean workstations, clean booths and dust-free cabinets
Features：
- Low power consumption, high static pressure and adjustable air speed for low operational cost
- Optimized air duct and airflow equalizing system for low noise and uniform air distribution

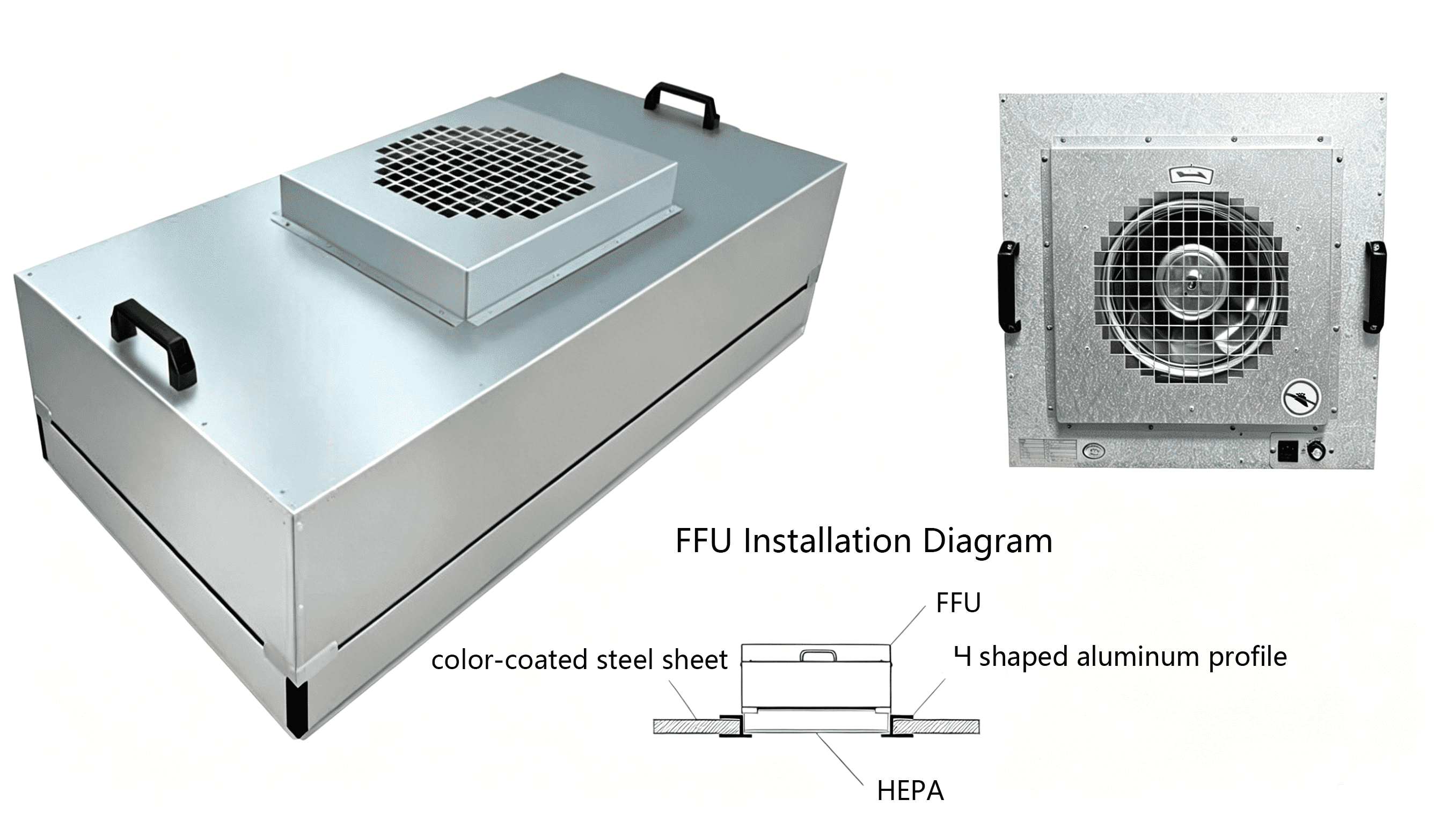

- Lightweight structure with recessed mounting design for easy installation, filter replacement and maintenance
- Equipped with branded fan, requiring no routine maintenance
- Supports variable voltage or frequency speed regulation, as well as centralized speed control and real-time monitoring via group control software
- Optional ULPA filter available to achieve ultra-high cleanliness level
Technical Parameters：
|
Model
|
FFU-1A
|
FFU-2A
|
FFU-4A
|
|
Overall Dimension (W×D×H, mm)
|
575×575×320
|
1175×575×320
|
1175×1175×320
|
|
Air Speed (m/s)
|
0.3-0.8
|
0.3-0.9
|
0.3-0.9
|
|
Air Volume (m³/h)
|
500
|
1000
|
2000
|
|
Filtration Efficiency
|
≥99.99% @ 0.5μm | ||
|
Noise Level (dBA)
|
52-59
|
50-58
|
50-58
|
|
Power Supply
|
AC Single-phase 220V, 50Hz | ||
|
Housing Material
|
A: Galvanized steel sheet; B: Brushed stainless steel; C: Powder coated cold rolled steel | ||
|
HEPA Filter Size (mm)
|
570×570×69
|
1170×570×69
|
1170×1170×69
|
Note: Custom manufacturing is acceptable. The actual color of filter media may differ from pictures, subject to real products.
