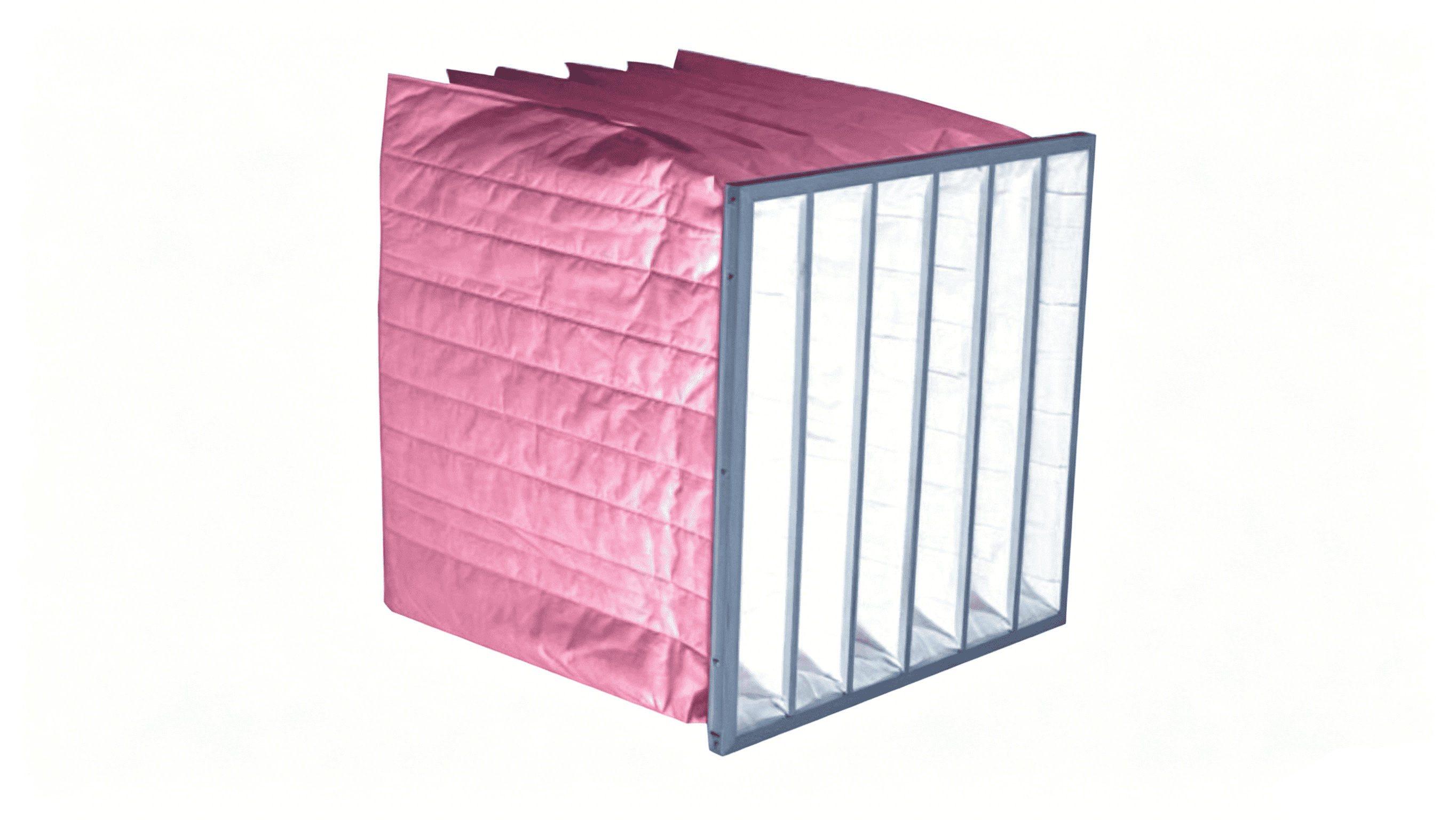

F7 Medium Efficiency Pocket Air Filter



分享



F7 Medium Efficiency Pocket Air Filter






Design Features:

  • Captures particulate dust and suspended matters 1-5μm
  • Large airflow and low air resistance
  • High dust holding capacity
  • Repeatedly cleanable and reusable



Applications:

  • Pre-filtration for high-efficiency air filters
  • Intermediate filtration for air conditioning systems
  • Air purification filtration for electronics, precision instruments, machinery, metallurgy, chemical, textile, pharmaceutical and food industries



 Technical Parameters:

Model
Overall Dimensions
(mm)
Pocket Quantity
Rated Air Flow
(m3/h)
Initial Resistance
(Pa)
Efficiency %
Grade
Material
W
H
D
Frame Material
Filter Media
F7
595×595×600
6
3200
45
80-85
(Colorimetric Method)
F7
Aluminum Alloy / Galvanized Steel
F7 Non-woven Fabric
595×595×600
5
2700
595×495×600
6
2700
495×295×600
6
1600
495×295×600
4
1300



Notes:Custom specifications are available. Slight color difference between product images and actual goods may exist, please refer to the delivered products.
