GC Activated Carbon Coarse Filter
分享

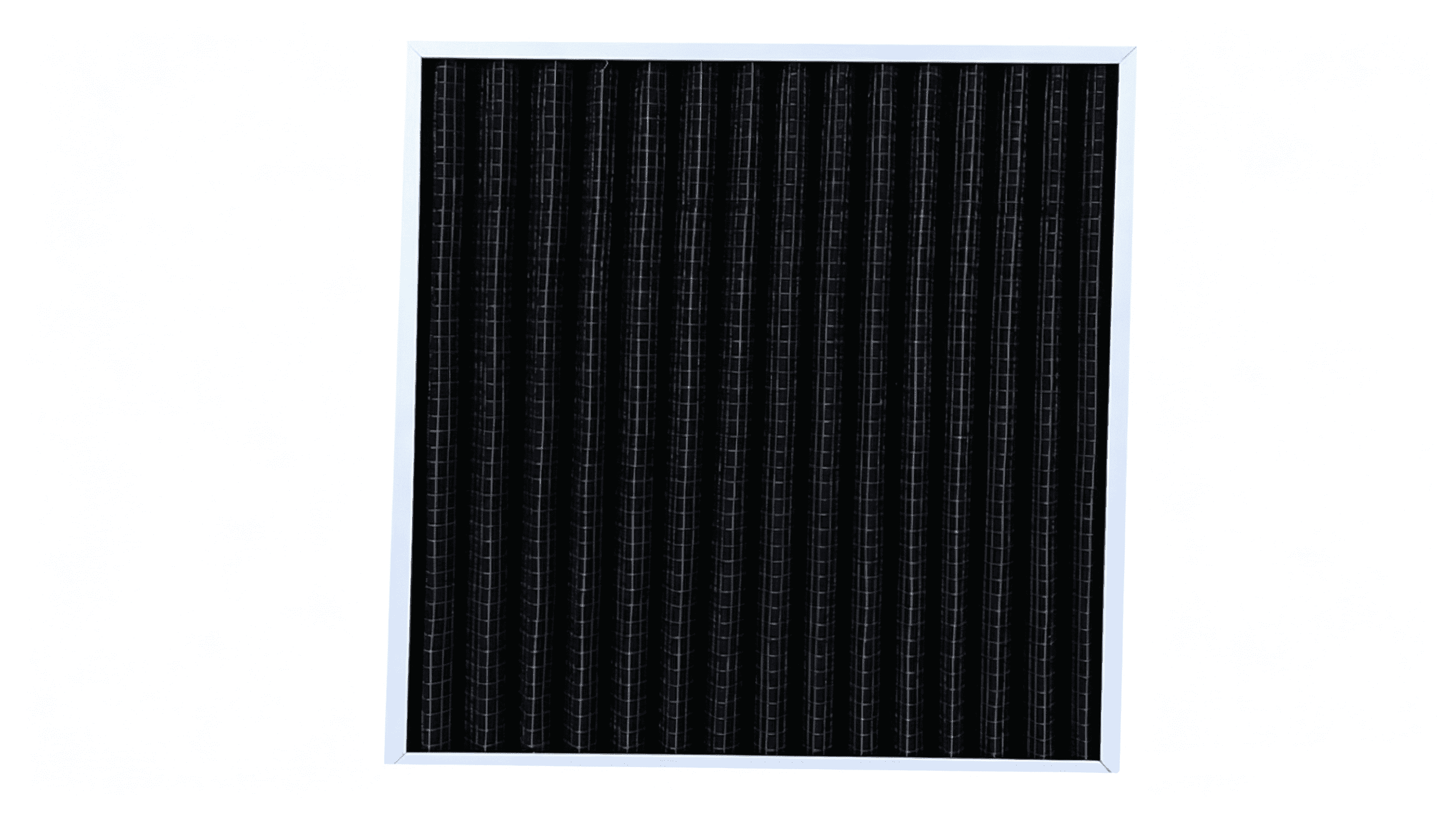

GC Activated Carbon Coarse Filter
Design Features：
- Made of premium activated carbon felt and activated carbon fiber
- Strong adsorption performance
- Quickly removes various harmful gases and purifies indoor
Applications：
- Remove peculiar odor and polluted air in HVAC ventilation systems
- Adsorb harmful gases including benzene, formaldehyde, ammonia, sulfur dioxide, acetone, hydrogen chloride and other volatile pollutants
Technical Parameters:
|
Model
|
Overall Dimensions（mm）
|
Rated Air Flow （m3/h)
|
Initial Resistance（Pa)
|
Material
|
|||
|
W
|
H
|
D
|
Frame Material
|
Filter Media
|
|||
|
GC
|
595×595×46
|
3200
|
40
|
Aluminum Alloy / Galvanized Steel
|
Activated Carbon Felt / Activated Carbon Fiber
|
||
|
595×495×46
|
2700
|
||||||
|
595×295×46
|
1600
|
||||||
|
495×495×46
|
2200
|
||||||
|
495×295×46
|
1300
|
||||||
|
295×295×46
|
800
|
||||||
Notes：Custom specifications are available. Slight color difference may exist between the actual product and the picture, please refer to the real object.
