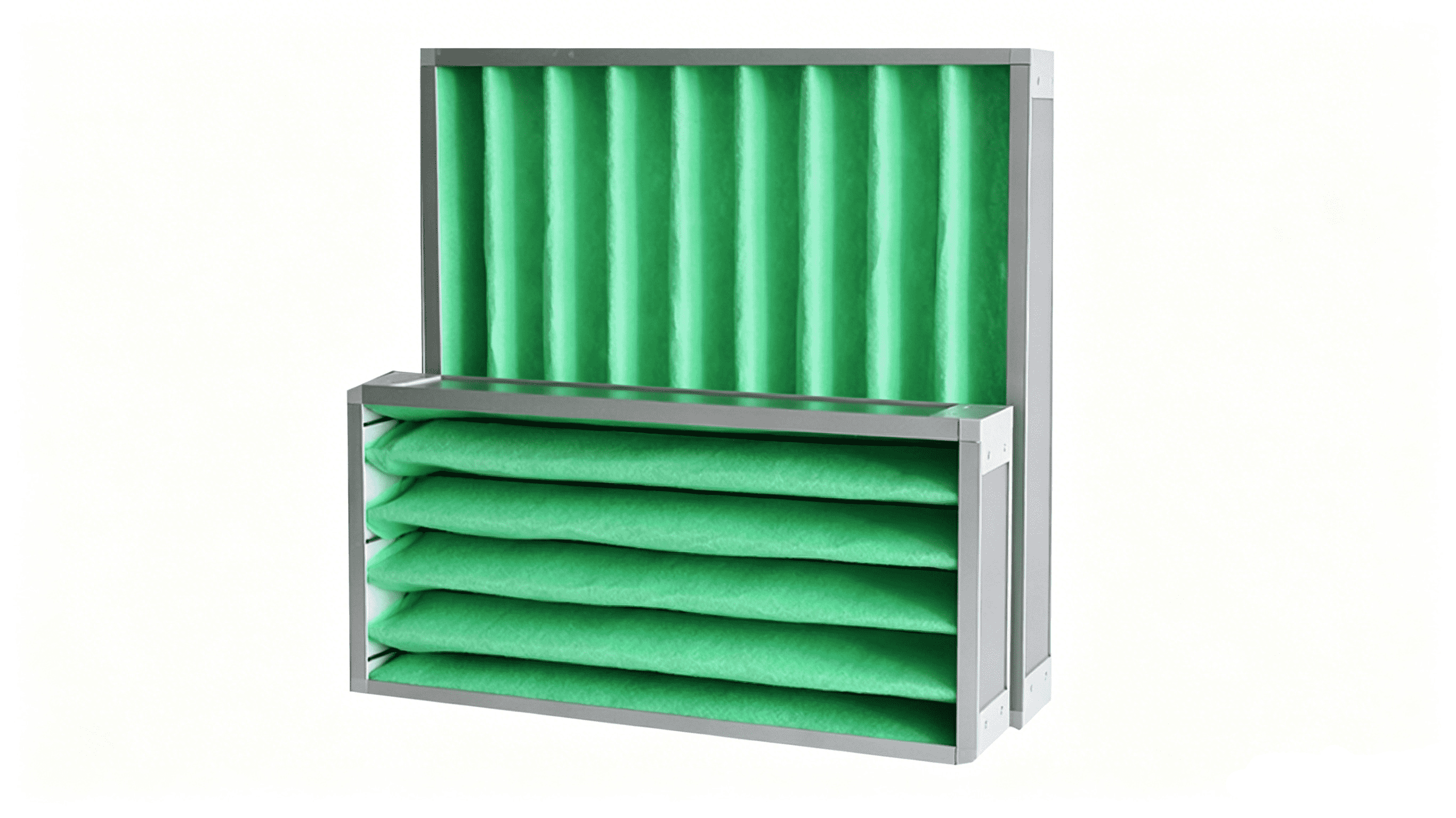

Dual-Bracket Washable Primary Air Filter
分享
Dual-Bracket Washable Primary Air Filter
Design Features：
- Detachable outer frame design for easy disassembly and maintenance
- High dust-holding capacity, effectively capturing coarse dust and airborne particles
- Lightweight M-WASH panel structure, stable and durable
- Premium washable filter media, reusable for 2–3 cleaning cycles
- Low air resistance, ensuring a smooth air supply to the system
Material Configuration：
- Frame: Aluminum alloy / Stainless steel / Galvanized steel
- Frame Thickness: 46mm, 96mm optional
- Filter Media: High-quality polyester synthetic fiber
- Reinforcement: Galvanized / Plastic-sprayed iron wire mesh
- Connector Corner: Aluminum alloy corner
Applications：
- Pre-filtration for air conditioning and ventilation systems to prevent internal dust pollution
- Intake pre-filtration for large air compressors
- Air supply and return filtration for clean room HVAC systems, extending the service life of medium and high-efficiency filters
- Ventilation filtration for ordinary industrial workshops to meet basic air cleanliness requirements
- Coarse dust filtration for air conditioning systems in commercial buildings
Technical Parameters:
|
Nominal Size
(Inch)
|
Actual Size
(mm)
|
Grade
|
Rated Air Flow
|
Initial Resistance at Different Airflow Rates（Pa)
|
Final Resistance (Pa)
|
||
|
W×H×D
|
W×H×D
|
|
|
70%
|
100%
|
120%
|
|
|
12×24×2
|
290×595×46
|
G4
|
1700
|
85
|
130
|
175
|
250
|
|
24×24×2
|
595×595×46
|
G4
|
3400
|
85
|
130
|
175
|
250
|
|
12×24×2
|
290×595×46
|
F5
|
1700
|
100
|
140
|
205
|
250
|
|
24×24×2
|
595×595×46
|
F5
|
3400
|
100
|
140
|
205
|
250
|
Notes：Custom specifications are available. Slight color difference between product images and actual goods may exist, please refer to the delivered products.
