Ceiling Filter / Spray Booth Ceiling Media
分享

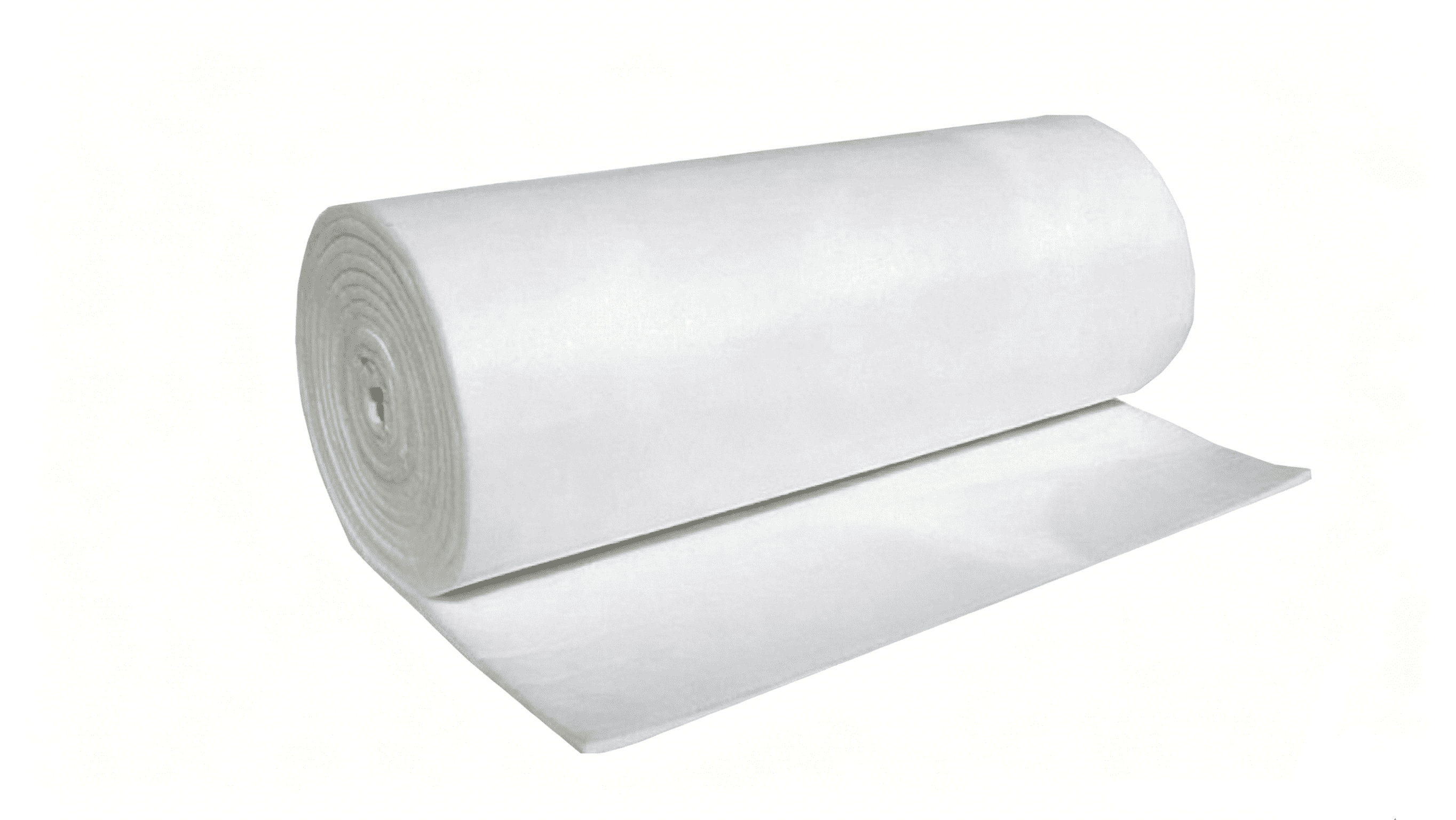

Ceiling Filter
Product Features:
- This series of ceiling filter is mainly used in surface spraying industry and specially designed for terminal filtration of spray booths. It is made of high-performance non-woven fabric with break-resistant synthetic fibers.
- Gradient density structure: Fiber density increases gradually toward the clean air side, delivering high filtration efficiency and longer service life.
- Adhesive treatment: The adhesive fully penetrates the filter media to block dust particles effectively.
- Fire performance: Complies with European fire standard DIN53438-F1.
- Excellent moisture resistance: Tolerates up to 100% relative humidity.
Technical Parameters:
|
Type
|
Size
|
Test Wind Speed（m/s）
|
Initial Resistance（Pa）
|
Rated Air Volume（m3/s)
|
Filtration Efficiency
ASHRAE
52.1-1992
|
Dust Holding Capacity（g/m2)
|
Final Resistance（Pa)
|
过滤级别
|
GSM (g/m2)
|
||
|
Length
（m）
|
Height（m）
|
Thickness（mm）
|
|||||||||
|
600G
|
1.6
|
21
|
20
|
0.25
|
30
|
900
|
55
|
450
|
450
|
|
250
|
|
1.0
|
21
|
20
|
0.25
|
30
|
900
|
55
|
450
|
450
|
|
280
|
|
|
560G
|
1.6
|
21
|
20
|
0.25
|
25
|
900
|
55
|
435
|
450
|
|
300
|
|
2.0
|
21
|
20
|
0.25
|
25
|
900
|
55
|
435
|
450
|
|
|
|
Notes: Custom specifications are available upon request. Slight color deviation between product images and actual goods may occur, please refer to the real product.
