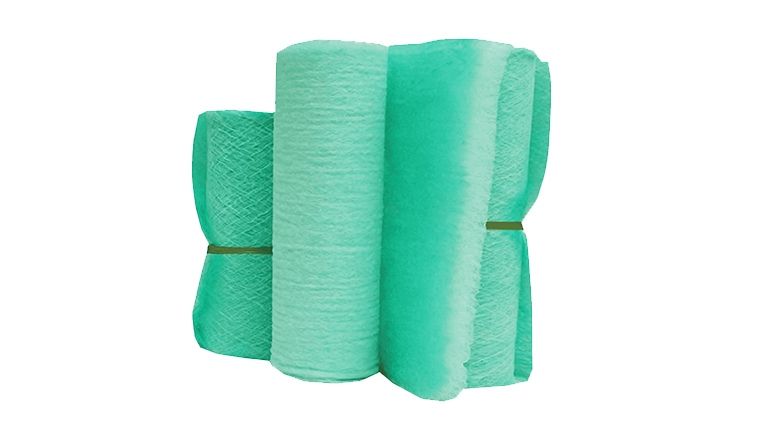

Paint Arrestor / Paint Mist Filter Mat
分享
Paint Arrestor
Product Features：
- This product is designed for high-efficiency filtration in surface spraying and heat recovery systems, featuring excellent dust and paint mist capture performance
- Graded density structure made of high-strength glass fiber
- White air outlet side; low compression deformation to maintain stable shape, maximizing storage capacity for paint mist and dust
- Temperature resistance: up to 170°C
- Average paint mist separation efficiency: ≥95%
Technical Parameters：
|
Frame Type
|
Size
|
Gravimetric Efficiency（%）
|
Air Velocity（m/s）
|
Dust Holding Capacity（g/m2)
|
Initial Resistance（Pa)
|
Final Resistance（Pa)
|
||
|
Width（m）
|
Height（m）
|
Thickness （mm）
|
||||||
|
Paper / Aluminum Alloy / Galvanized Steel
|
20
|
0.8/1.0/2.0
|
50
|
92-96
|
0.7-1.75
|
3400-4500
|
10
|
130
|
|
20
|
0.8/1.0/2.0
|
100
|
97-99
|
0.7-1.75
|
3800-4950
|
10
|
150
|
|
|
585×595×46（W×H×D)mm
|
92
|
|
3400
|
30
|
200
|
|||
|
585×595×21（W×H×D)mm
|
92
|
|
3000
|
25
|
200
|
|||
Notes：Custom specifications are available. Slight color difference between pictures and actual products may exist, please refer to the delivered goods.
